Product Details

Blue Butt Connector 4.0mm (crimps terminals)

Hover over image to zoom

Click to enlarge

Click to enlarge

Blue Butt Connector 4.0mm (crimps terminals)

Product Description

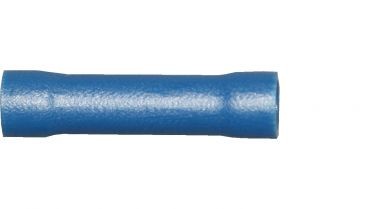

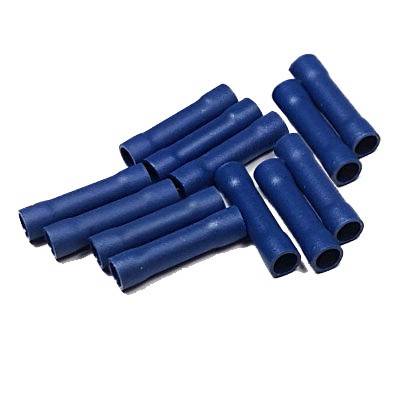

Blue Butt Connector 4.0mm.

Suits wire range 1.5 - 2.5mm²

- Conductor: Brass

- Insulation: Vinyl

- Plating: Tin

Operating Temperature: -10°C to +75°C
Max. voltage rating: 600V
Max. current rating: Red - 19A, Blue - 27A, Yellow - 48A
Flared barrel for easy wire insertion
Wire stop feature to ensure correct wire position
Low insertion force and easy crimping whilst ensuring secure termination

All terminals conform to BS4579 and BS4G178.

Packed in 100's

Pack Qty *

Code	Option	RRP	Price

Quantity Discounts

Other pricing options below which may include a discount.

Quantity	Price per unit
500+	0.00
500+	0.00
500+	0.00
500+	0.00
1000+	0.00
1000+	0.00
1000+	0.00
1000+	0.00
